Home » Products » CCTV Systems » Hikvision 7604/7608/7616 NI - E1/E2 » Hikvision 7604/7608/7616 NI - E1/E2

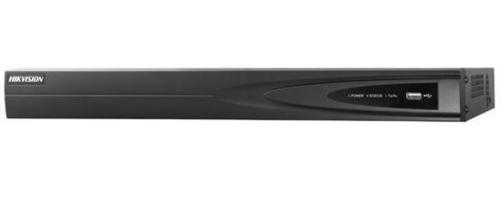

Hikvision 7604/7608/7616 NI - E1/E2

Hikvision 7604/7608/7616 NI - E1/E2
Hikvision 7604/7608/7616 NI - E1/E2
Product Code : Hikvision 7600 NVR
Brand Name : Hikvision
Product Description

Hikvision DS-7604/7608/7616NI-E1(-E2) Embeded NVR

• Third-party network cameras supported
• Up to 6 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P
resolution
• 4/8/16-ch network cameras can be connected with
40M/80M/160M incoming bandwidth
• Up to 2 SATA interfaces
• Support network detection, including network delay,
packet loss, etc.



Specification :

Video/Audio Input
IP video input: | 4/8/16-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 40/80/160Mbps
Outgoing bandwidth: | 80Mbps
Remote connection: | 128
Video/Audio Output
HDMI/VGA output: | 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution: | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate: | Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: | 4/8/16-ch
Decoding
Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 6-ch@1080P
Hard Disk
SATA: | 1 Sata Interface For 1 HDD(E1) / 2 SATA interfaces for 2 HDDs (E2)
Capacity: | Up to 4TB for each disk
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: | 1 × USB 2.0 and 1 × USB 3.0
Alarm In: | 4-ch(optional)
Alarm Out: | 1-ch(optional)
General
Power Supply: | 12V DC
Consumption(without hard disk and POE): | ≤ 10W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 380 chassis
Dimensions: | 380 × 290 × 48mm (15.0 ×11.4 × 1.9
inch)
Weight(without HDD): | ≤ 1 kg
Trade Information
  • Main Domestic Market
  • Gujarat
